How to Add a Loading Bay in Scaffold Designer

Originally posted on Friday, May 22, 2015

You can now add Loading Bays to your scaffold designs.

loading-bay-1

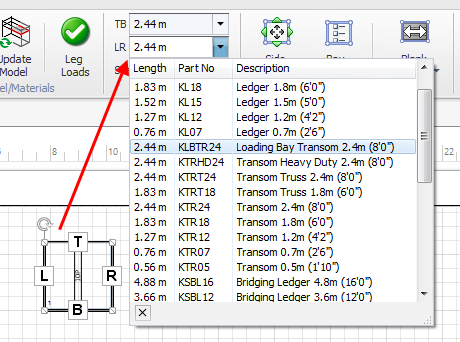

Create a bay with dimensions that match your scaffold system’s loading bay





RingType: 2.5m (8’6”)

CupType: 2.4m (8’0”)

Kwikstage: 2.4m (8’0”)



(Loading Bay Transom is Kwikstage only.
For other systems, use appropriate load bearing member.)

 loading-bay-2

Tip: If you want to use a different size loading bay, you can add one in the Material Master.

First select the existing Loading bay, then make a duplicate and change its dimensions.

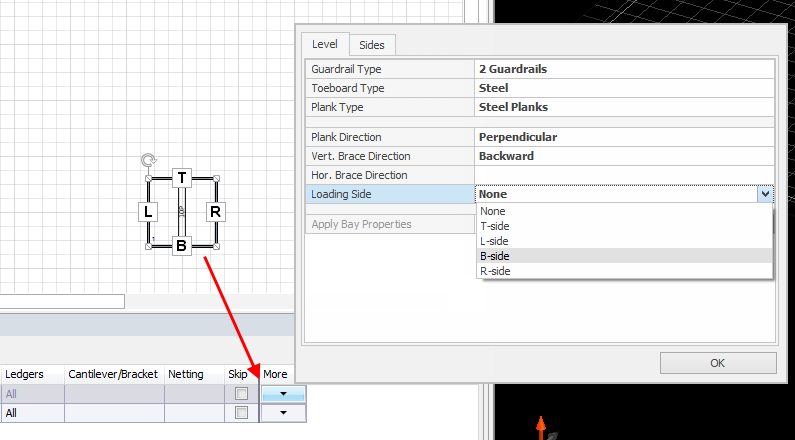

Select the bay and, in the Bay Level Editor, click the More button on the level you wish to add the Loading Bay to. On the Level tab, select the side for the Loading Bay Gate.

loading-bay-3

Return to New Enhancements for Scaffold Designer

By: Cliff Young
