How to Customize Your Scaffold Bays in Avontus Designer

Customize-Any-Bay-8

Originally posted on Friday, April 17, 2015

In Scaffold Designer 2015, you can add or remove just about any material from any bay to design the scaffold you want.

Customize-Any-Bay-1

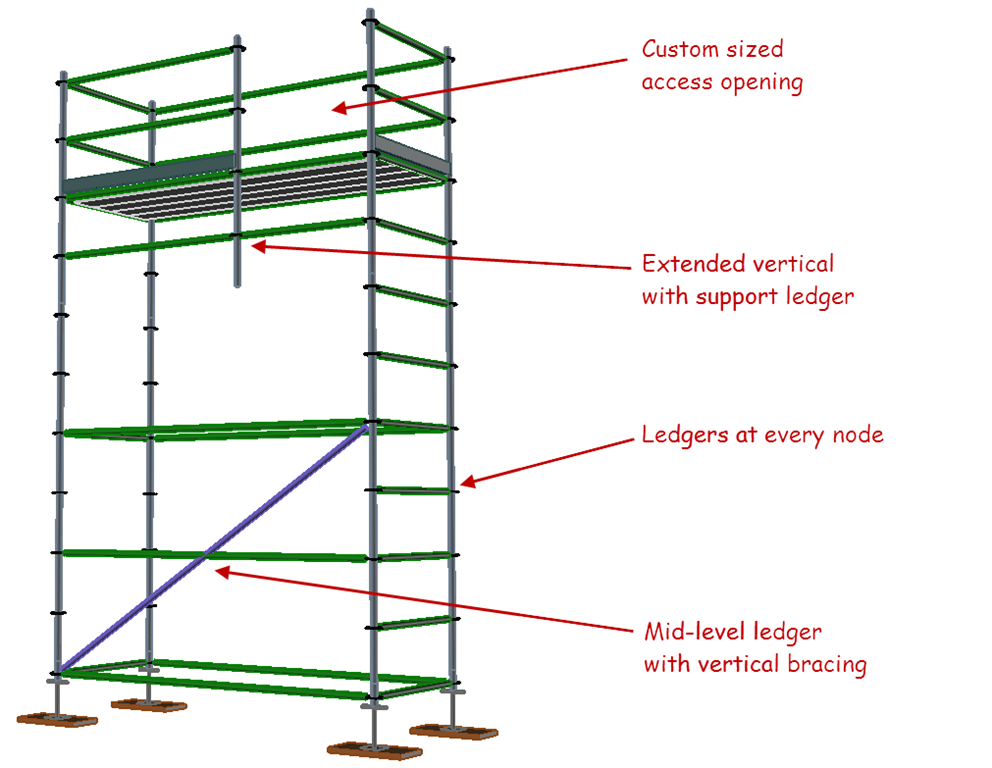

Here are just some of the customizations you can make to your bays:

  • Remove (skip) individual vertical standards (legs)
  • Remove (skip) any bay side
  • Extend vertical standards (legs) above or below the bay level
  • Add ledgers to any node level
  • Add bracing anywhere
  • Create a planks-only bay

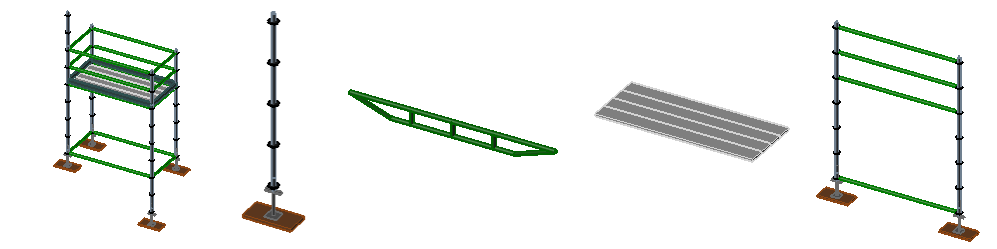

Customize-Any-Bay-2

How to create a bay with only one material and add it to an existing bay.

In this example, we’ll add a ledger to the middle of a bay level.
(The same concept can be applied to any material.)

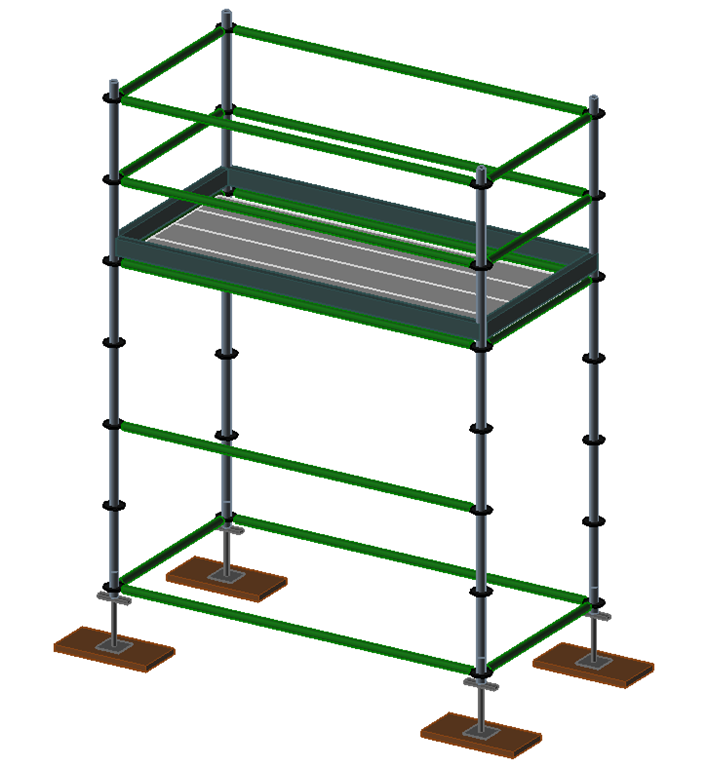

  Customize-Any-Bay-3


Create a ledger-only bay.

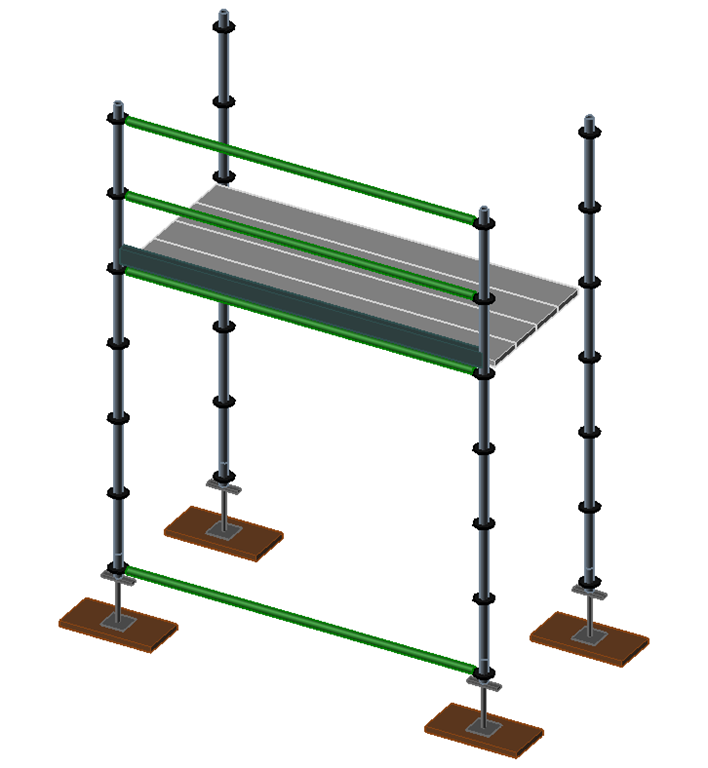

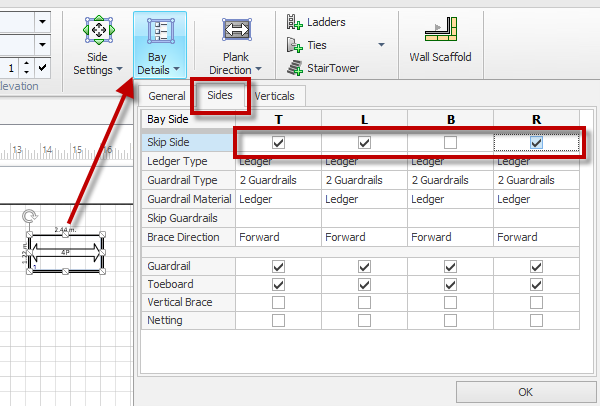

Skip all side, except one.Customize-Any-Bay-4l

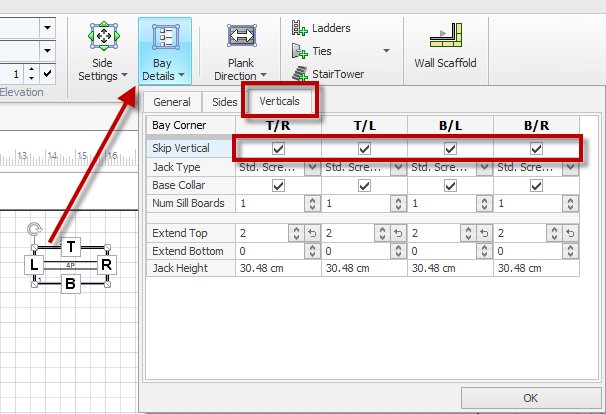

Skip all verticals. Customize-Any-Bay-5l  Customize-Any-Bay-5r

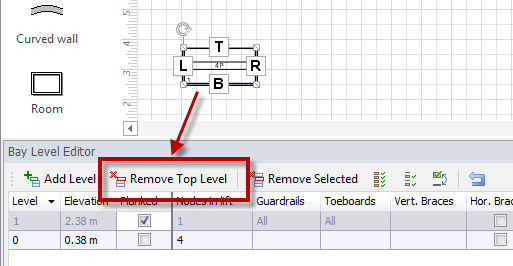

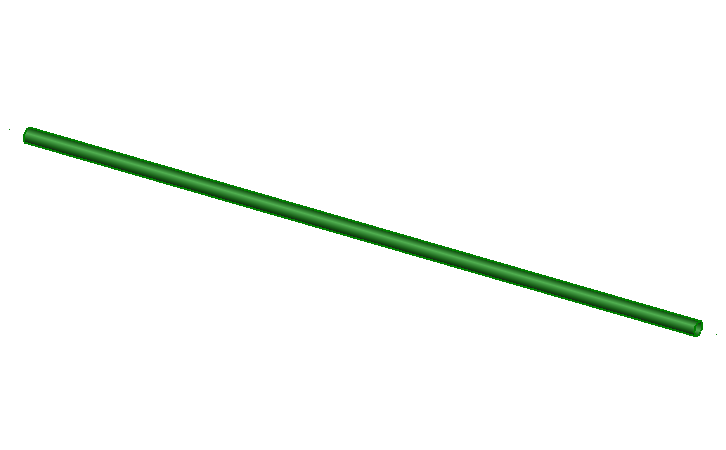

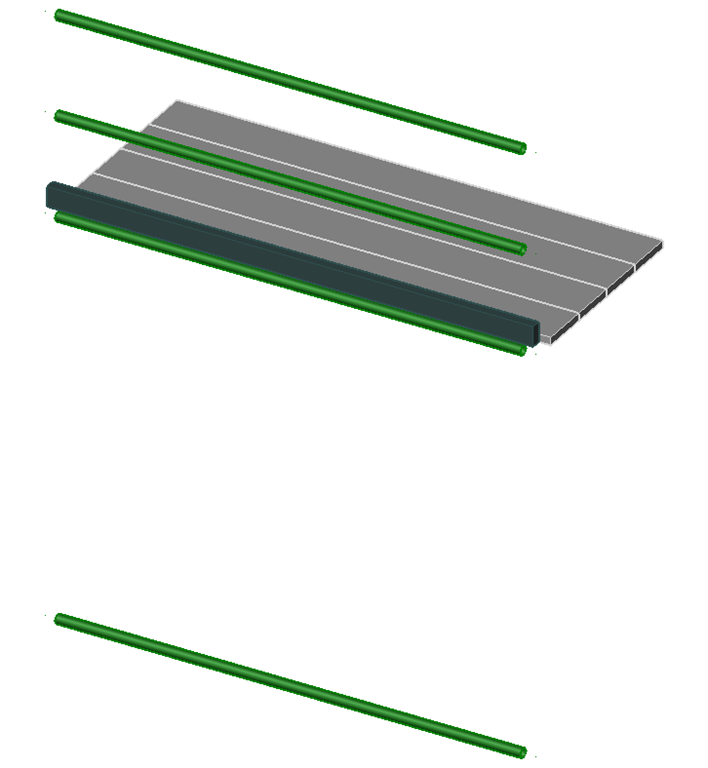

 Remove the top level.Customize-Any-Bay-6l  Customize-Any-Bay-6r

Select the ledger-only bay and raise it to the desired level.

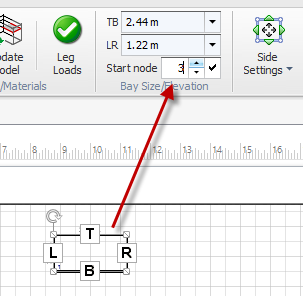

Customize-Any-Bay-7l

 Move the ledger-only bay into place over the existing bay.



Customize-Any-Bay-7r


Customize-Any-Bay-8

By: Cliff Young
